Commercial & Industrial Refrigerators
Commercial & Industrial Refrigeration
Built to perform. Engineered to last.
Our refrigerator range is designed for businesses that cannot afford downtime. From small ice cream Manufactures to large cold storage facilities, each unit delivers consistent temperature, energy efficiency, and rugged durability. We use high-quality compressors, High density insulation, and corrosion-resistant materials to ensure years of reliable service.

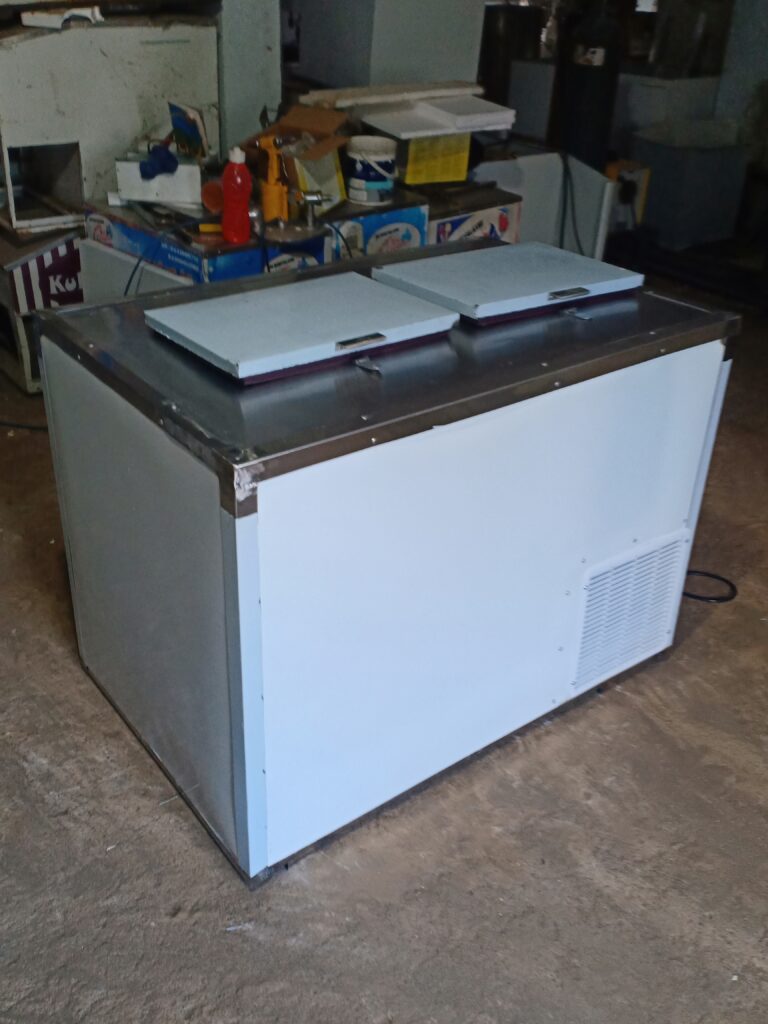

120 Liters Freezer On Wheels(FOW) / Pushcart Freezer
The backbone of your frozen food business.
Key Features
- Capacity : 120Liters
- Product Size : Outer Dimensions : L x W x H – 940x640x750 mm
- Product Size : Inner Dimensions : L x W x H – 440x440x555 mm
- High-efficiency compressor for lower electricity bills
- Rust-proof interior and exterior coating
- Low noise operation – suitable for customer-facing areas
- 120L
- 300L
- 500L
- 800L
- 1000L+ (custom on request)
Best For
- Ice cream parlors
- restaurants
- bakeries
- meat shops
- frozen food retailers
Ice Maxx Industries 120 Liters FREEZER ON WHEEL TECHNICAL SPECIFICATION
Ice Max Industries,120 Liters Freezer on Wheel fully new pattern developed and maintenance free product energy saving , fully automation production 100% Copper leak proof. Technical modification point wise details as given below :
1. Compressor: Now available with GMCC 90 and Tecumseh THK-2390 specially for FOW developed by Tecumseh develop in Brazil Unit but production in India without spring compressor. Now, using nylon base foundation specially for bad roads.
2. Excel Rotor Fan : We are using 5 Watts Fan Motor 100% maintenance free.
3. Condenser : Pin and Tube Condenser, newly developed 100% copper with aluminum Pins. Nitrogen gas tested for 100% leak proof.
4. Product Tank: 0.6 mm GI
5. Outer Body : Precoated Sheet 0.6 mm base material Galvanize Sheet both side inner & outer hot treatment powder coating paint with plastic safety guard film.
6. Top & Door : Fully SS.
7. Main Wiring and Compress Wiring : 100% automobile grade without tapping fully clipping system.
8. Copper Pipe : 100% Pure Copper without joint coiling in evaporator.
9. Evaporator Coiling : 100% Rolling made by machine not hand made.
10. Powder Coating Paint : 100% Glossy Powder Coating Paint.
11. Extra Protection for Leakage : 100% Food grade -600C temperature chemical use for glycol leakage.
12. Folding Compressor Assembly Plate : Try System Compressor can be replaced outside of FOW due to separate assembly plate.
13. We are providing SS bottom frame and metal grills instead of plastic grills.
14. Dryer with Multicooler : We are using 100% copper dryer with multicooler and with double vacuum system.
15. Fabrication : We are developed our outer body fully one peace body not jointing body for long life quality.
16. Product Size : L x W x H – 940x640x750 mm
D Freezer
Extreme cooling for long-term preservation.
It is the most advanced refrigeration solutions in India built to consume upto 53% lesser energy than any other freezer
Key Features
Convertible design with smart temperature management: 2 in 1 Convertible which can be used as a cooler or a freezer.
Low energy consumption: With advanced cooling technology it consumes 53% lesser energy compared to any other conventional models, helping you save on electricity bills.
Insulation efficiency: Designed with 90 MM top of the line insulation material to maintain consistent temperatures and provides upto 7hrs. backup even after power cuts.
- 100L
- 200L
- 350L
- 500L
- 700L
- 800L
- 1000L
Best For
- Meat and seafood wholesalers
- bulk ice cream manufacturers
- dairy farms
TECHNICAL SPECIFICATION
| Dimensions (WxDxH mm /inch) | 1145x735x845 mm, 45x29x33 inch |
|---|---|
| Capacity | 294 Litres |
| No. of doors | 2 |
| No. of Baskets | 1 |
| Insulation | 90mm High Density PUF Cyclopentane |
| Refrigerant | R-134a/R-290 |
| Voltage | Single Phase 190-254V, AC, 50Hz |
| Temperature Range | -23°C to +8°C |
| Inner & Outer body Material | Corrosion Resistant Prepainted Galvanised Steel sheet |
| Warranty | 5 Year Comprehensive, |
Single Door FOW Container For Vehicle
Suitable For Maruthi Super Carry, Ashok Leyland, Mahindra Super Max Dost Vehicle
Key Features
- Modular PUF (polyurethane foam) for superior insulation
- 100% Pure Copper Coil
- Backup upto 12 to 15 hours
- Temperature range: -30°C and above (as per your product)
- Energy-efficient condensing unit
- Digital controller with temperature logging
- Suitable for both indoor and outdoor installation
- 3000L
- 3500L
- 4000L
- 4500L
- 5000L
- 5500L
Best For
- Dairy plants
- vegetable and fruit storage
- pharmaceutical storage
- ice cream warehouses
- food processing units

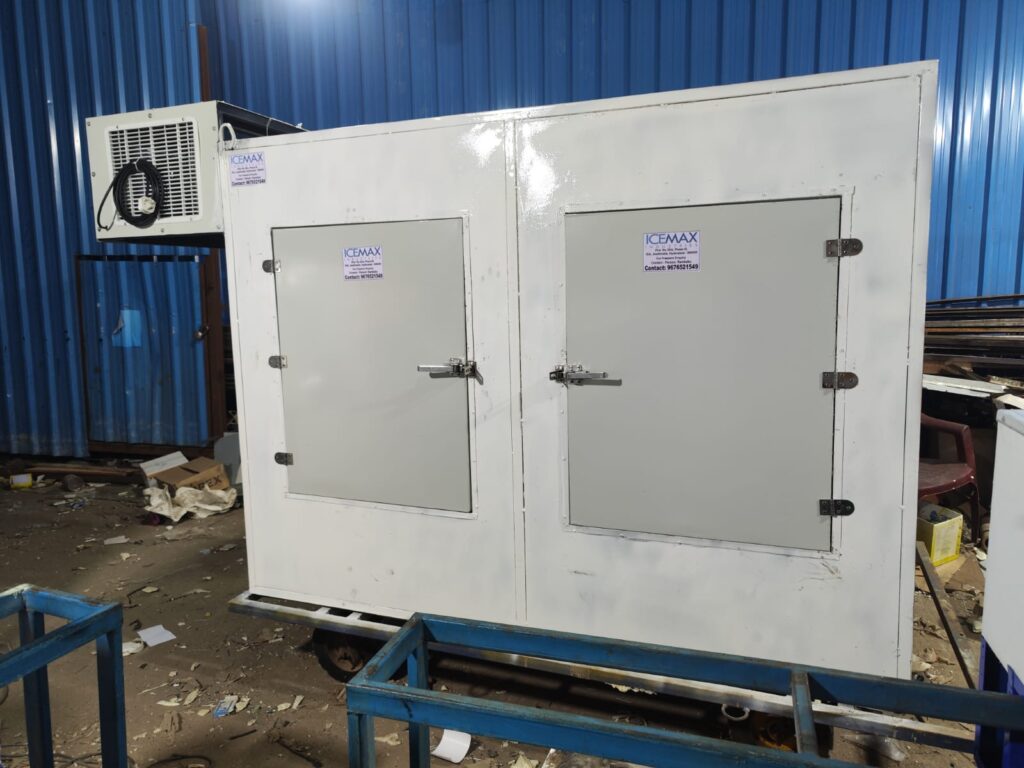

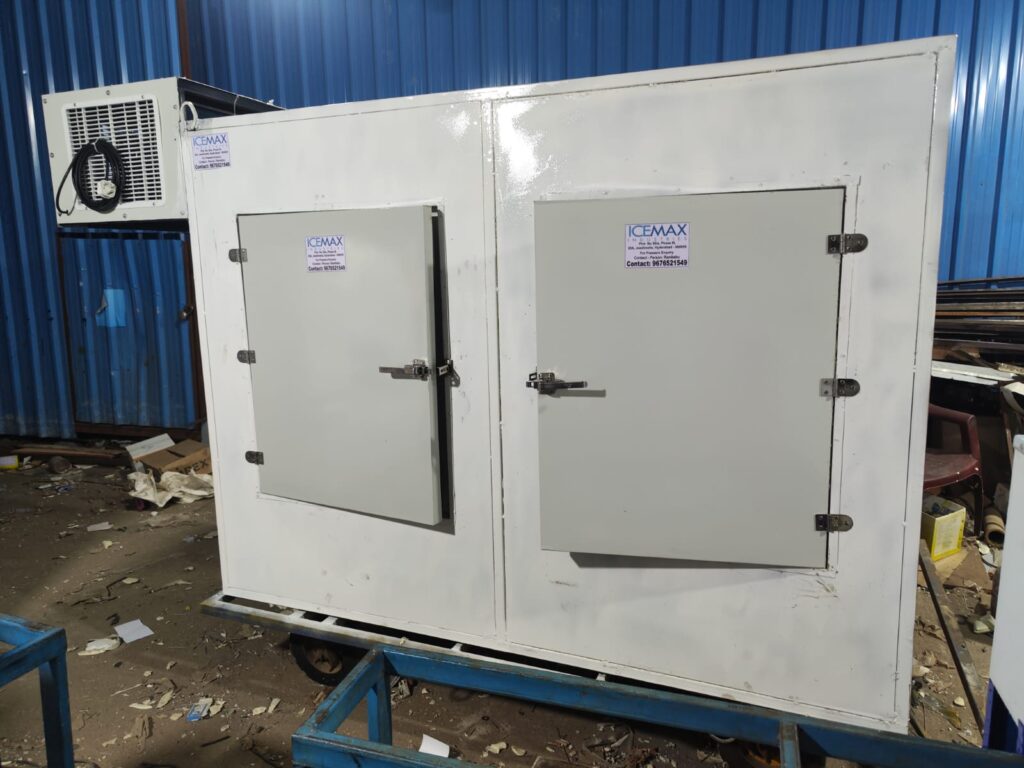

Double Door FOW Container For Vehicle
Suitable For Maruthi Super Carry
Perfect for ice cream delivery, ensuring product integrity during transit with maintained temperature
Convertible design with smart temperature management: 2 in 1 Convertible which can be used as a cooler or a freezer.
Key Features
- Modular PUF (polyurethane foam) for superior insulation
- 100% Pure Copper Coil
- Backup upto 12 to 15 hours
- Temperature range: -30°C and above (as per your product)
- Energy-efficient condensing unit
- Digital controller with temperature logging
- Suitable for both indoor and outdoor installation
- 3000L
- 3500L
Best For
- Dairy plants
- vegetable and fruit storage
- pharmaceutical storage
- ice cream warehouses
- food processing units

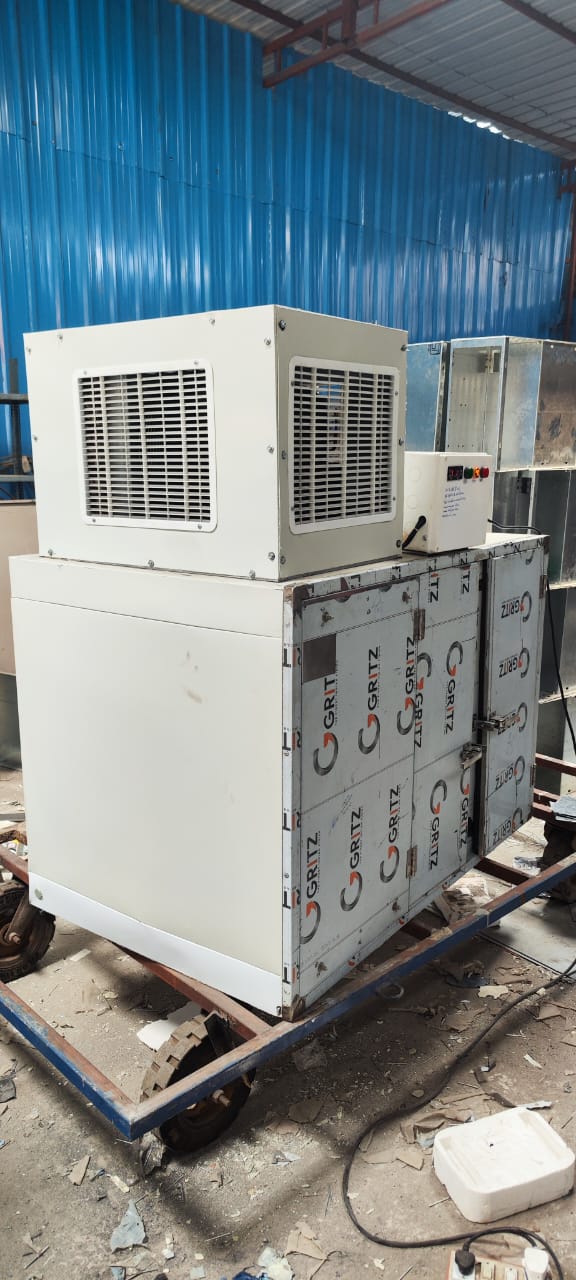

24 Mould Tunnel Hardener
A 24-mould tunnel hardener is an industrial freezing system designed for high-capacity ice cream production. It rapidly freezes products like ice cream bars (chocobars) and popsicles to a core temperature of -18°C to -20°C, preventing the formation of large ice crystals and ensuring a smooth, creamy texture . This process is a continuation of the initial freezing, hardening the product so it can hold its final shape and be safely packaged
Key Features
Air-Cooled Condenser: Uses an air-cooled system, making installation more flexible .
Rapid Hardening: The blast of cold air ensures quick freezing, which is critical for maintaining product quality .
Precision Control: Digital controllers allow for accurate temperature management, ensuring consistent product quality across batches .
- 16 Moulds
- 24 MouldsL
TECHNICAL SPECIFICATION
Capacity: Processes 24 moulds per batch.
Cooling Temperature: Operates at a very low temperature, typically maintaining an environment of -28°C to -32°C for rapid and effective freezing .
Hardening Time: Achieves the required core temperature in approximately 15 to 20 minutes per batch, depending on product size and composition .
Refrigeration System: Uses industrial-grade compressors and refrigerants like R-22 or R-404a to achieve and maintain the necessary low temperatures .
Construction: Built with a stainless steel body for durability, hygiene, and ease of cleaning in a food production environment .
Control System: Equipped with a digital temperature controller and an electrical panel for precise monitoring and control of the freezing process
Wine Chiller / Wine Cooler
Preserve the taste, aroma, and quality of every bottle.
Key Features
- Double-layer tempered glass door for insulation
- Low-vibration compressor to protect wine sediment
- Digital touch control with temperature range 5°C – 18°C
- LED interior lighting for elegant display
- Removable wooden or chrome shelves
- UV-protected glass to prevent wine damage
- Silent operation – ideal for dining areas
- 20 Bottles
- 30 Bottles
- 50 Bottles
- 100+ Bottles
Best For
- Hotels
- fine-dine restaurants
- wineries
- bars
- wine retailers
- home collectors
